Biothm TENS Ear Clip Electrode for Vagus Nerve Stimulation – Integrated Leads
Biothm TENS Ear Clip with Cable
The Biothm TENS ear clip electrode combines two gently domed contact surfaces with permanently attached leads. Designed as an ear electrode for vagus nerve stimulation setups, this double-sided clip connects to a compatible external device for your general wellness routine.
Each clip arm has its own fixed lead, so there are no separate pins to insert at the clip itself. Choose the connector version that matches your device or existing lead wire.
Why choose this ear clip?
- Leads stay with the clip. The attached design keeps the clip and its leads together between uses and simplifies assembly at the ear clip.
- Double-sided electrode contact. Two opposing contacts sit on the inside of one spring clip, with one contact on each arm.
- Three connection options. Choose a full cable with a 3.5 mm mono plug or 2.35 mm safety connector, or two short leads with 2.0 mm female sockets.

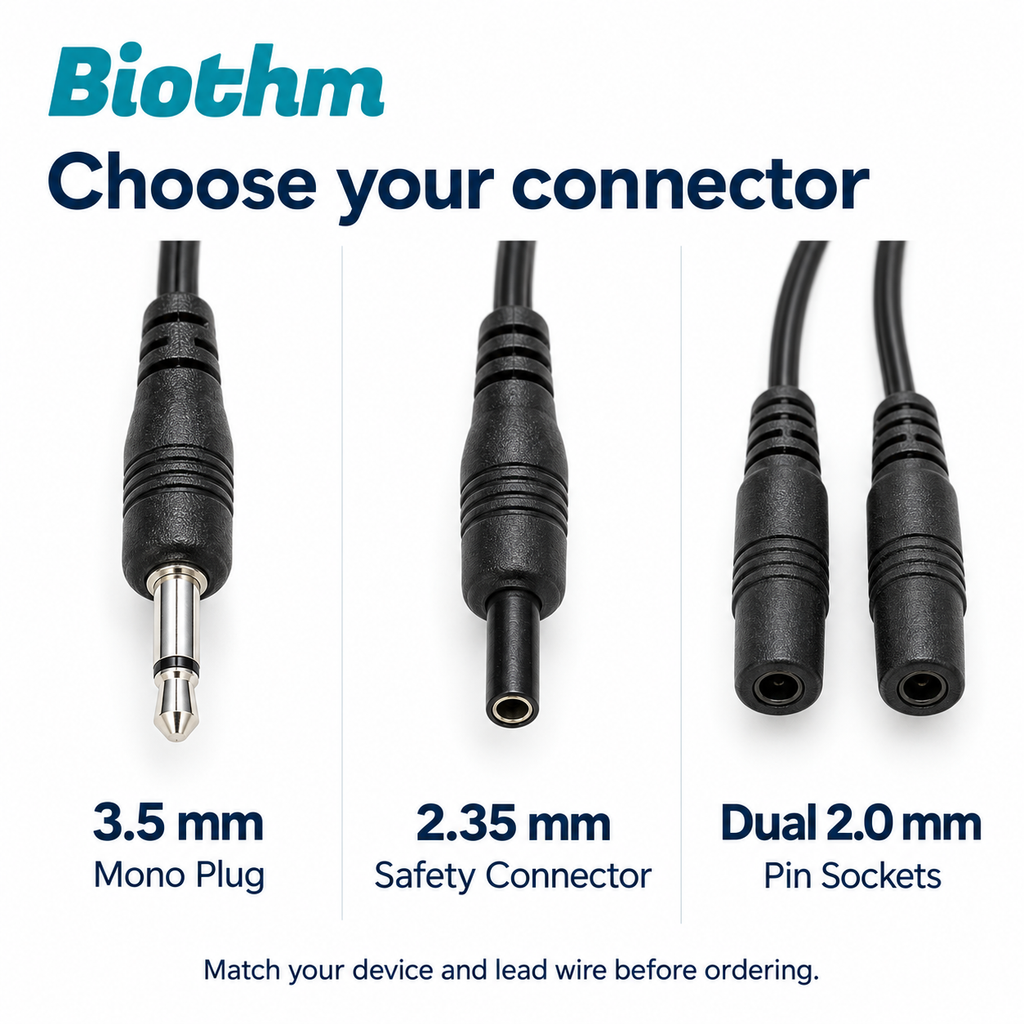

Choose your connector
All three versions use the same black ear clip. The difference is how the attached leads connect to your setup.
| Connector | Connection guide |
|---|---|

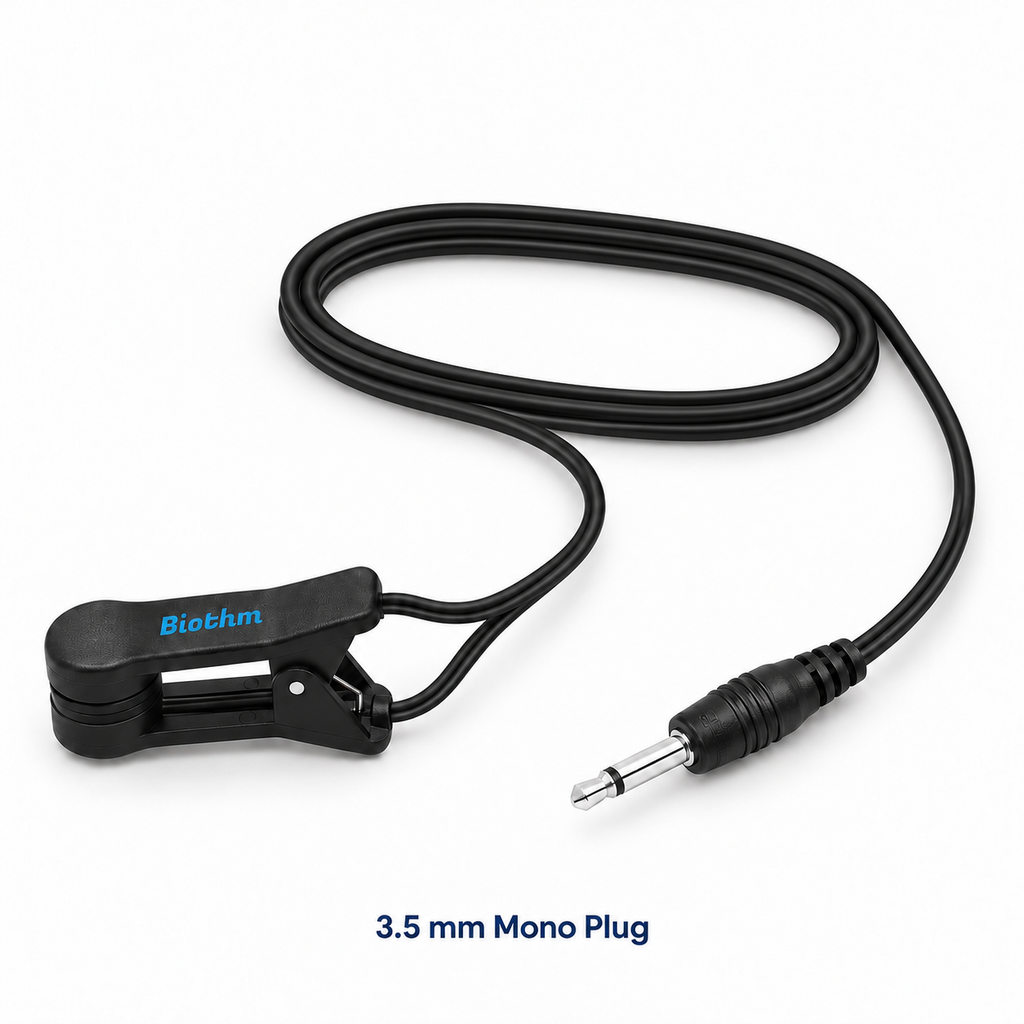

| 3.5 mm Mono Plug | Full attached cable ending in one 3.5 mm mono plug. For a compatible device with a matching mono connection. |

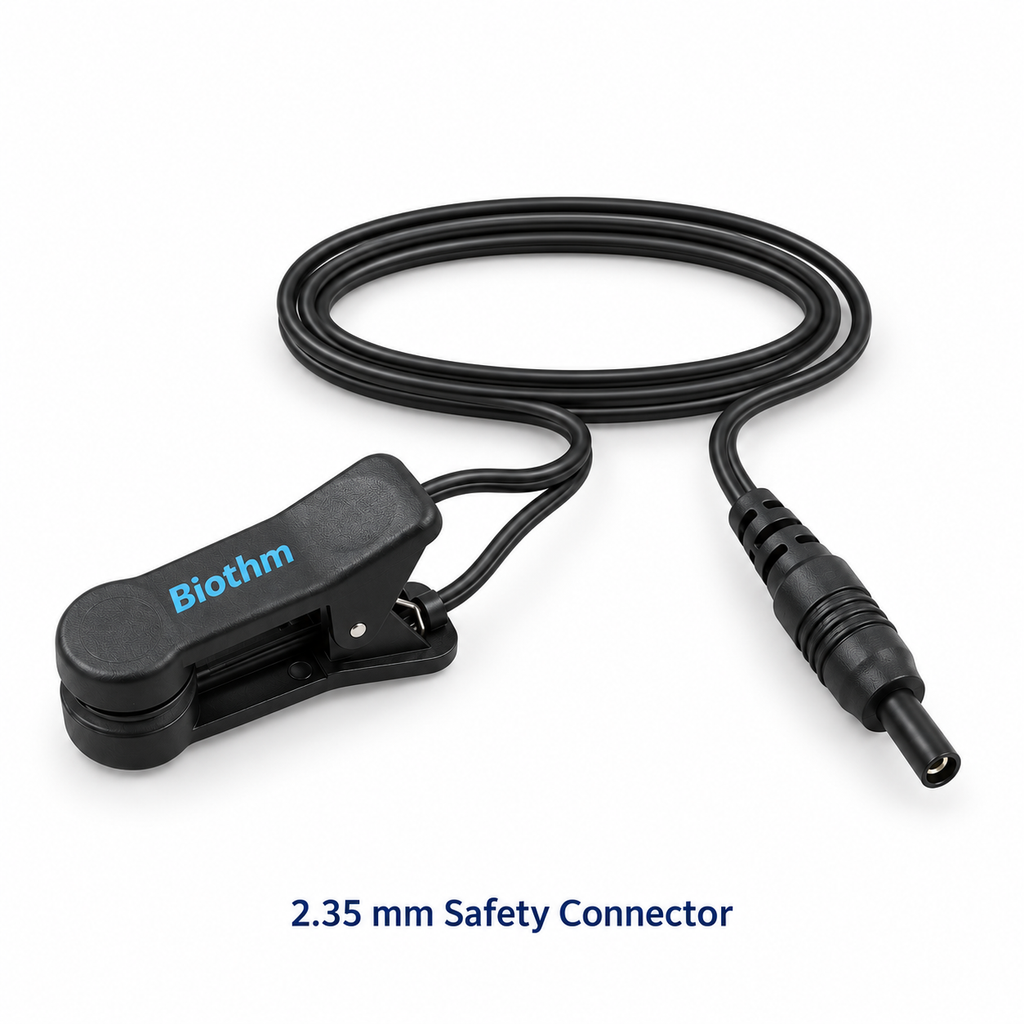

| 2.35 mm Safety Connector | Full attached cable ending in one 2.35 mm connector with an insulating shroud. Compare the connector shape and device requirements before ordering. |

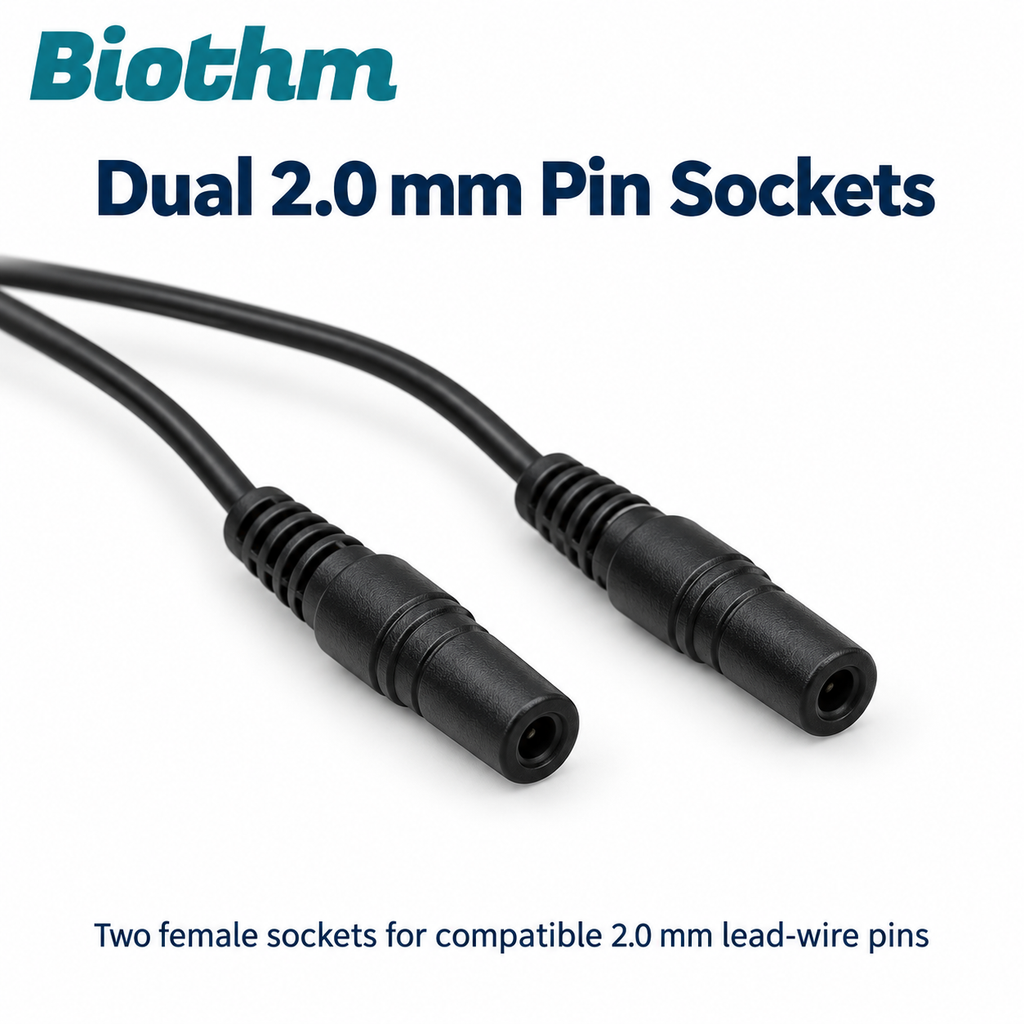

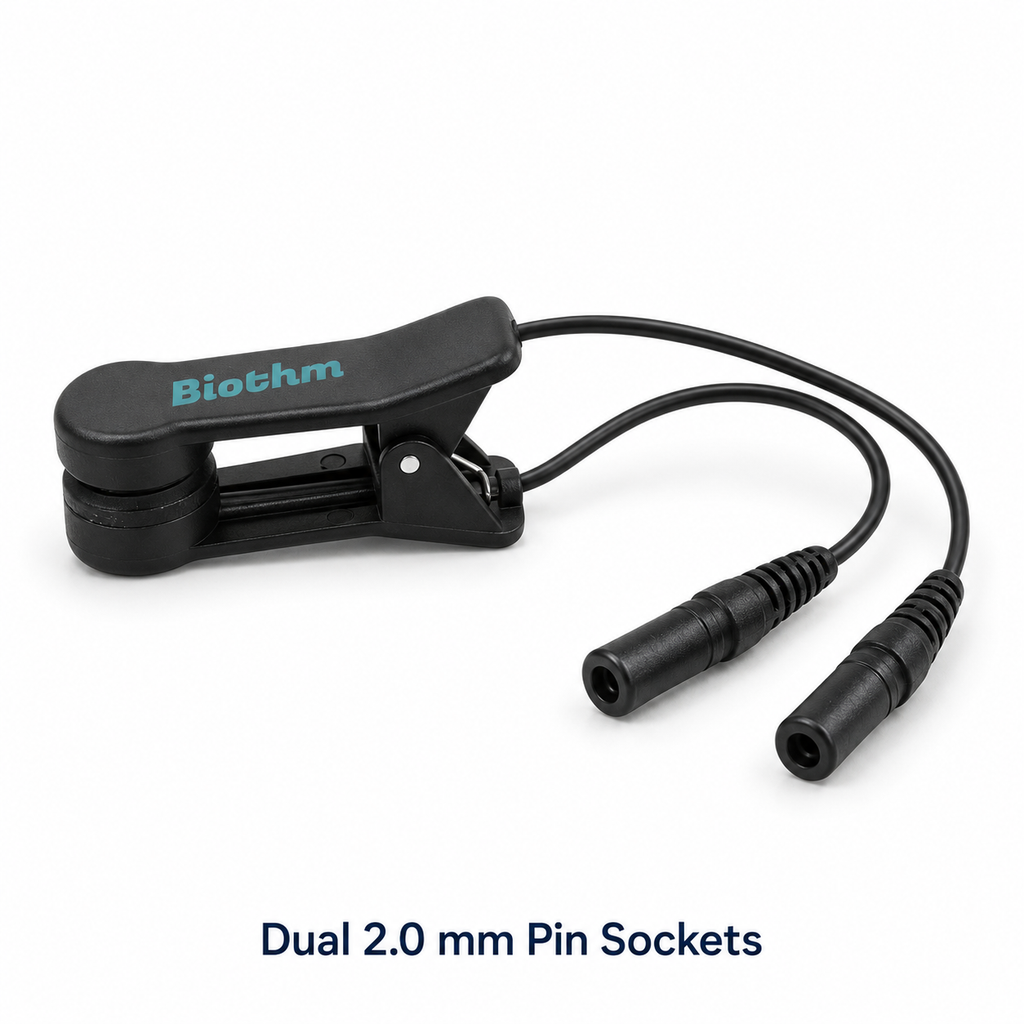

| Dual 2.0 mm Pin Sockets | Two short leads, each ending in a female socket. Connects to an external lead wire with two 2.0 mm metal pins; this version does not have a full cable to the device. |
Check your exact device model, connector fit and electrical requirements. Use only a device whose instructions permit the intended ear electrode and placement.
Product specifications
| Brand | Biothm |
|---|---|
| Product type | TENS ear clip electrode accessory |
| Clip design | Black spring clip with two opposing, gently domed contacts |
| Lead attachment | One permanently attached lead per clip arm |
| Connection formats | 3.5 mm mono / 2.35 mm safety / dual 2.0 mm female sockets |
| Stimulation source | Compatible external device; the ear clip does not generate stimulation |
Frequently asked questions
Is this a complete vagus nerve stimulator?
No. This is an ear clip electrode accessory. It needs a compatible external stimulation device; the clip itself does not provide power, settings or stimulation pulses.
How do I choose an ear clip for vagus nerve stimulation?
Start with your device's supported electrodes and intended use, then match the connector format. A matching plug size alone does not confirm electrical compatibility or suitability for ear stimulation.
Does the dual 2.0 mm version connect directly to my device?
It connects to the two 2.0 mm pins on a compatible external lead wire. Its two short leads end in female sockets, rather than a single device-end plug.
Can I detach the leads from the ear clip?
No. The leads are permanently attached to the clip arms. The connector on your selected version is at the other end of the cable or short leads.
How do these connectors compare with TENS 7000 lead wires?
Traditional TENS 7000 lead wires use a 2.35 mm shielded connector at the device end and 2.0 mm pins at the electrode end. This helps distinguish the two connection points; a 3.5 mm mono plug is a different format.
This is a connector reference, not a recommendation for ear use. The TENS 7000 DT7202 manual prohibits placing electrodes on the head, so this listing does not recommend that device for ear or vagus nerve stimulation.

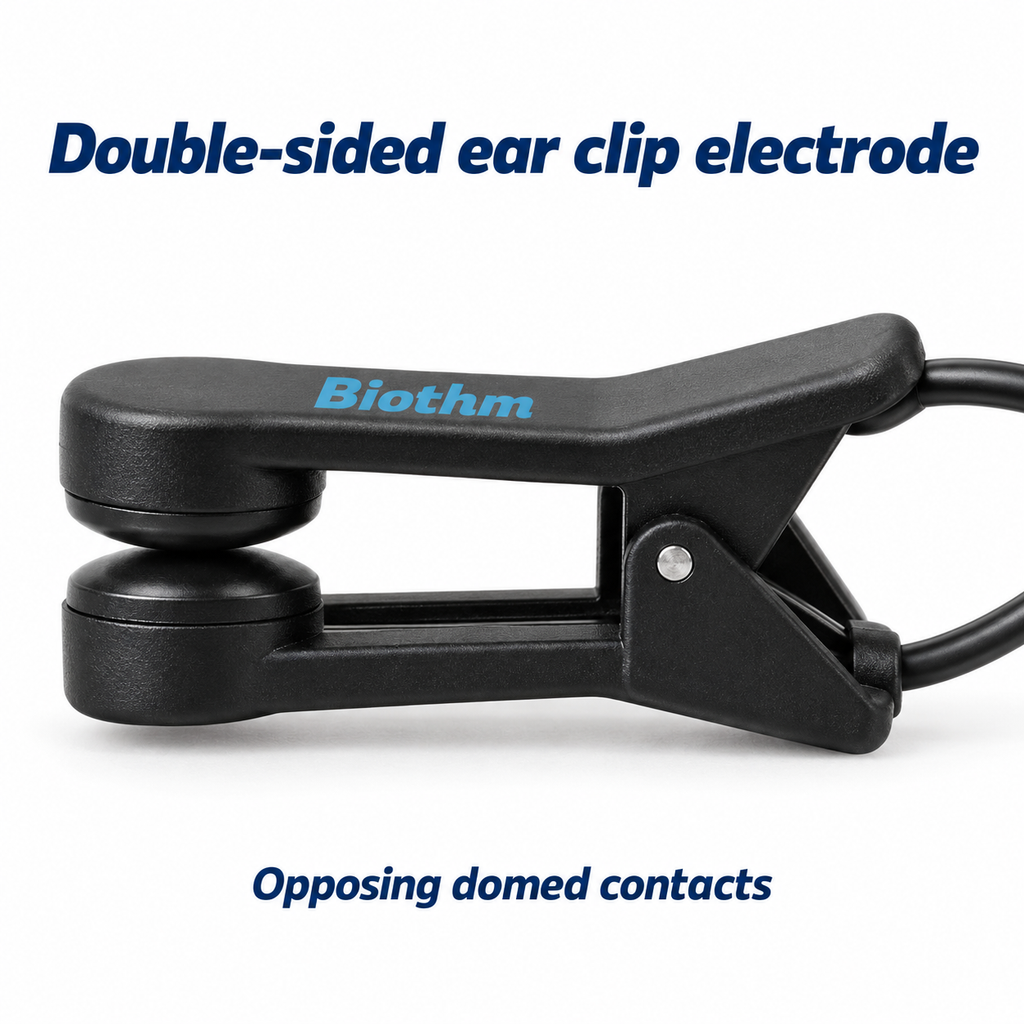

What does double-sided mean?
It describes the two facing electrode contacts on a single clip, one on each arm. It does not mean two separate ear clips.
Where can this ear clip be worn?
The wearing images show concha and tragus placement examples. Use the position specified by your compatible device's instructions; the examples do not replace its placement guidance.
Use and care
- Clean the contact surfaces before use.
- Lightly moisten both contacts with a small amount of water or saline.
- Do not immerse the ear clip in water. Follow the preparation and use instructions for your compatible device.
Explore more Biothm ear clip electrodes and accessories.
For general wellness use. Not intended to diagnose, treat, cure or prevent any disease.
